Hanwa Electronics Ind. Co., Ltd. Innovation and excellence in measurement equipment for semiconductors since 1966
HANWA Factory Support Center at iTest Inc.

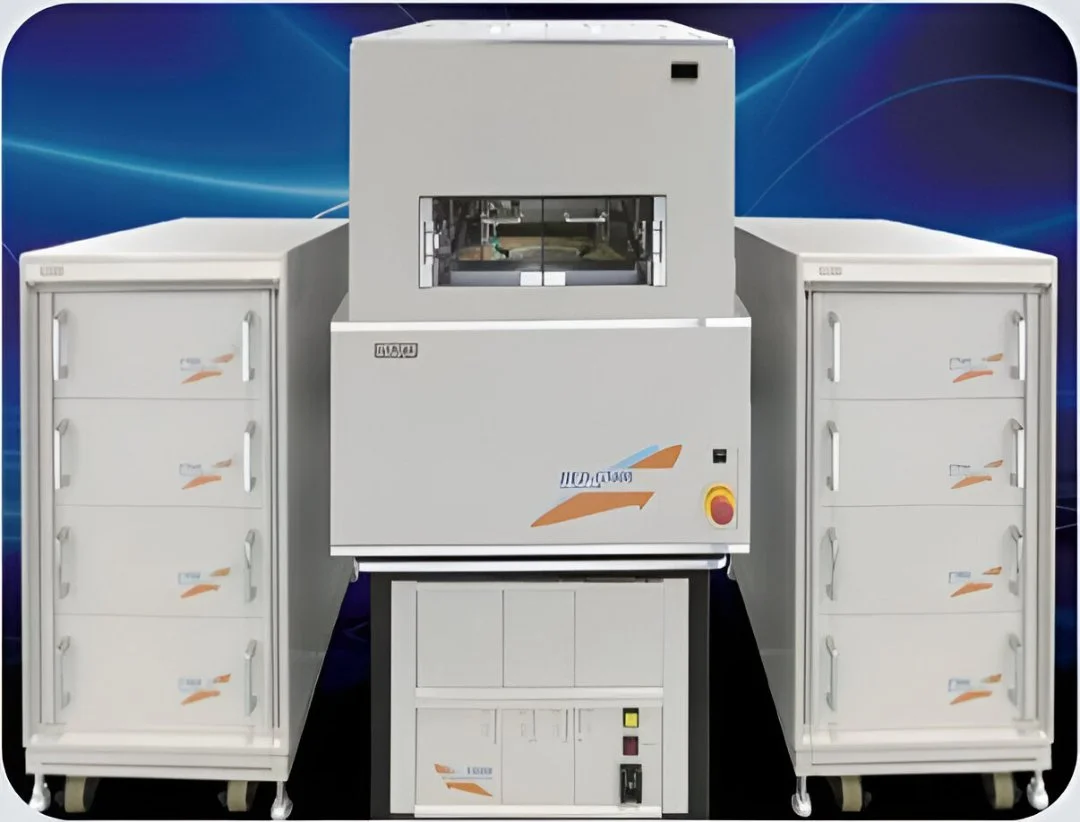

Hanwa HED G51024

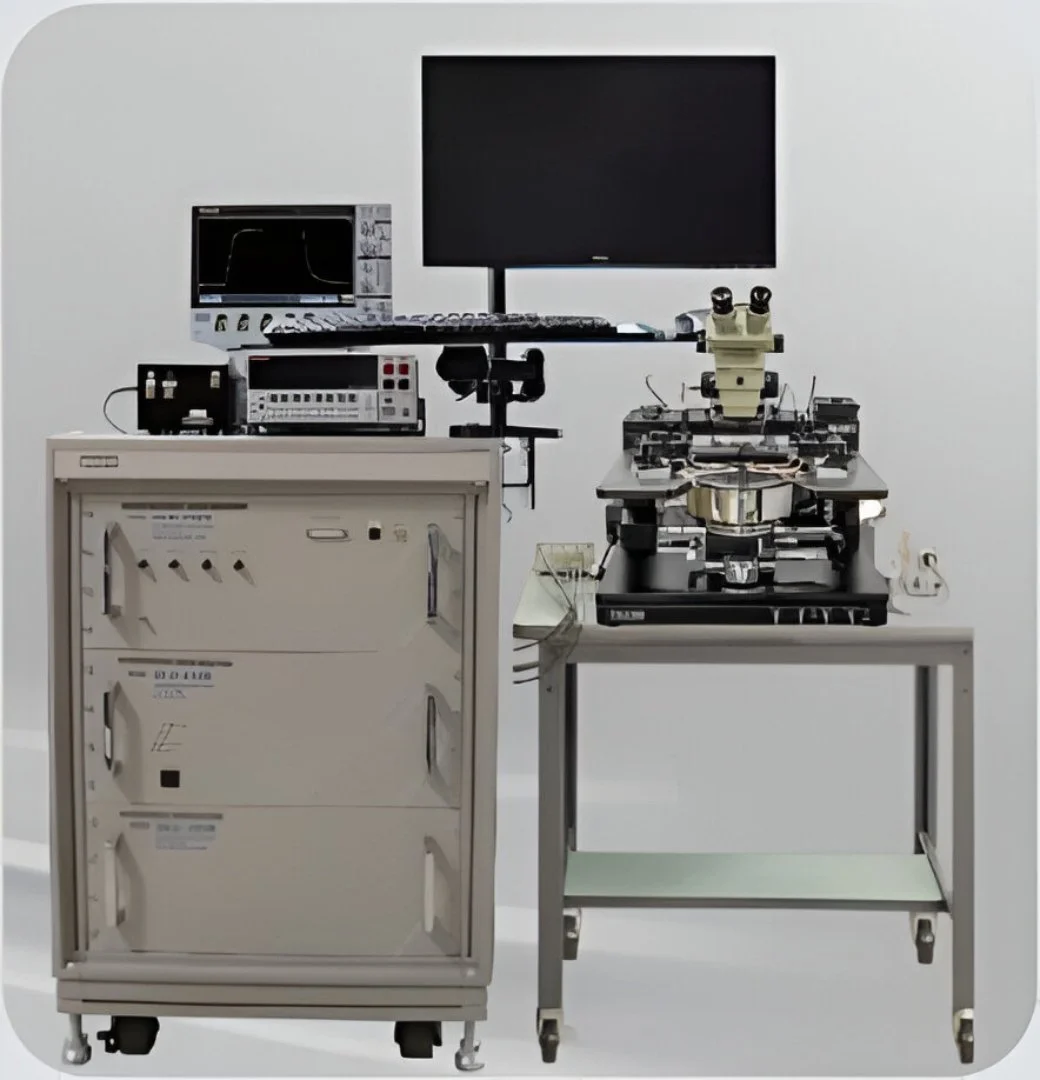

Hanwa HED C5000R

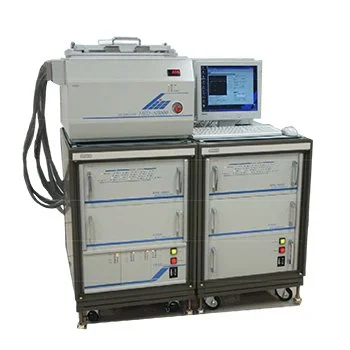

Hanwa HED T5000

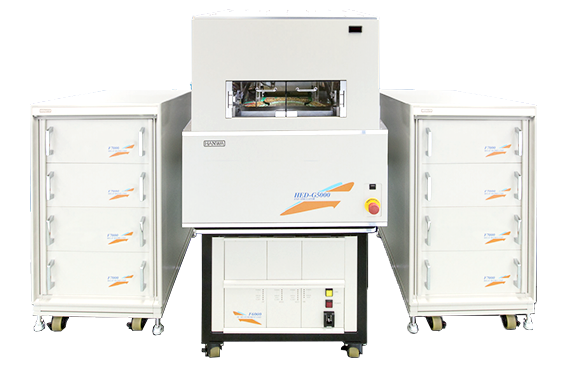

HED-G5000
Full Automatic ESD Tester
❖ Adaptable to the following international standard waveform; JEDEC, ESDA, AEC, and JEITA
❖ This system’s uniquely short discharge circuit is made possible by its original mechanical design.
❖ The short circuit minimizes the influence of inductance and capacitance on the data.
❖ The use of a single circuit ensures data stability for each device pin tested.
Fully Automatic ESD Tester
❖ Realization of single discharge circuit
➢ Use the same discharging circuit for each test pins. These are useful to stability for discharging waveform and reducing of trouble.
❖ Adaptable to various standard waveforms
➢ This is high equipment that corresponds with Japan and aboard standard. (JEITA/ESDA/JEDEC)
❖ Adaptable to Latch-up test
➢ Corresponds with ESD Latch-up, contact current Latch-up and Vsupply overvoltage Latch-up test

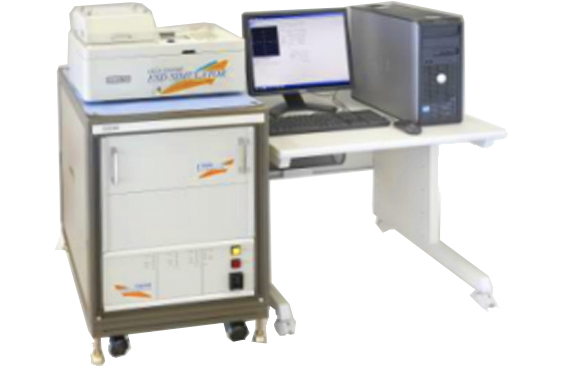

HED-S5000R
Table top ESD Simulator
❖ Connecting with curve tracer, this tester is possible to make a quick ESD assessment.
❖ Compact and precise for LED’s and other low pin count
❖ Engineering Lab tool of choice.
Table top ESD Simulator
❖ Simultaneous plural zapping is practicable
➢ Install maximum of 8 sockets and simultaneous plural zapping into each socket is possible.
❖ Adaptable to various standard waveform
➢ This corresponds with domestic and aboard standard such as JEITA, JEDEC and ESDA standard.
❖ Adaptable to Latch-up test
➢ Adaptable to ESD pulse method, Vsupply overvoltage method and constant pulse current method.
❖ Establishing the diversity of destruction judgment
➢ Allows the destruction judgment with DC measurement and providing the function test bu using as option.

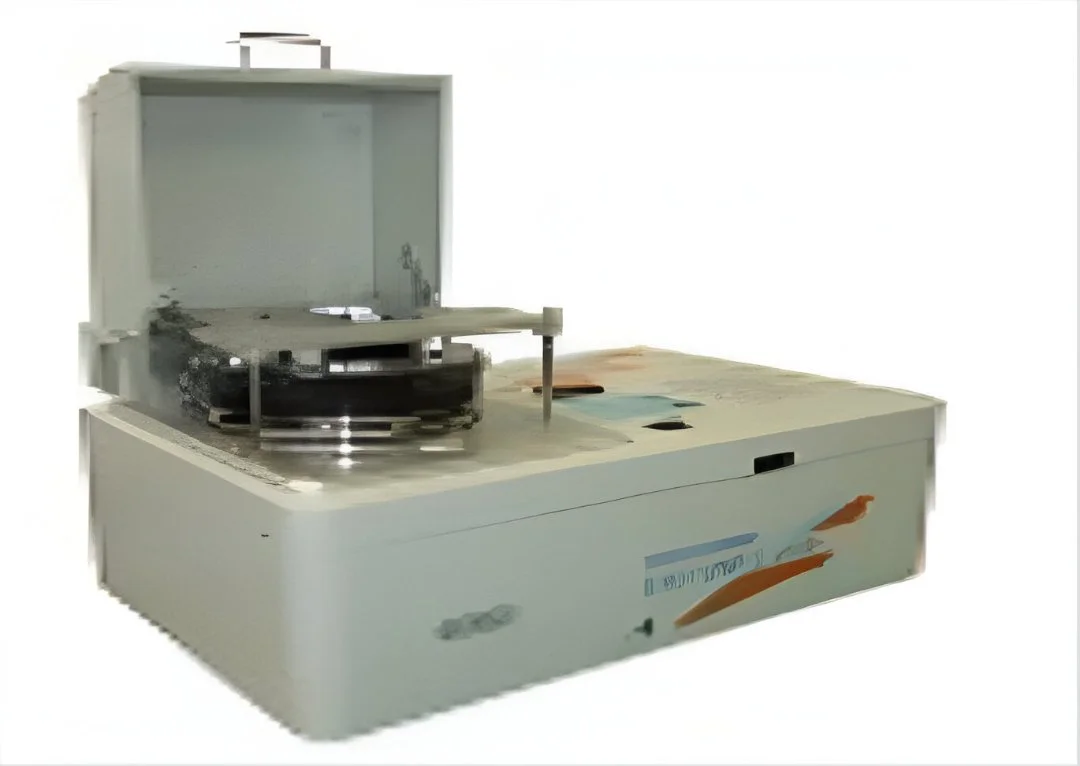

HED-N5000-DCPC

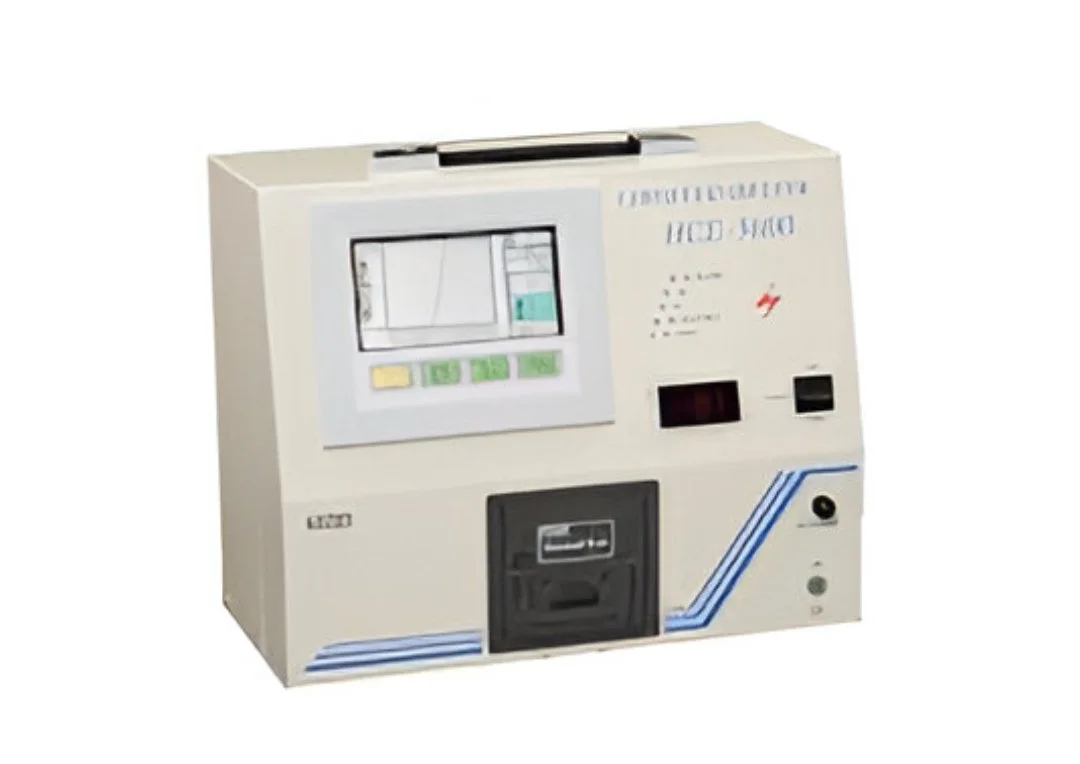

HCE-5000
Compact ESD Tester
❖ Stand-alone ESD test system
❖ The Hanwa Compact ESD Tester has been designed for portability, improved use of space and high performance at a budget.
❖ Perform HBM, MM and leakage measurement without a PC or curve tracer.
